FJD N10 CORS System

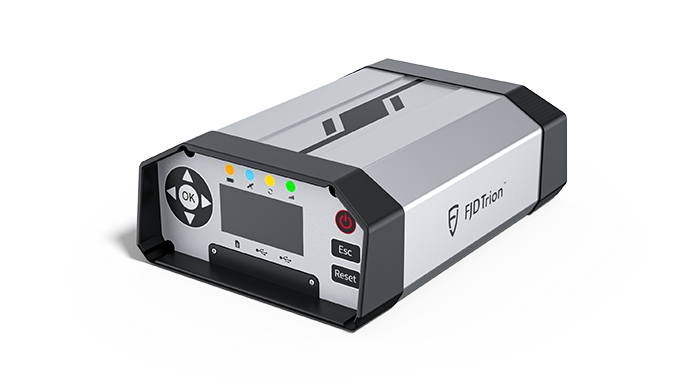

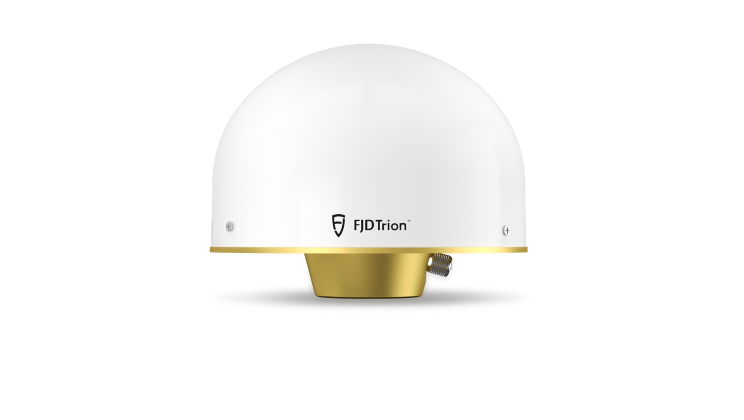

The FJD Trion N10 CORS System provides 24/7 correction data services for numerous users. The GNSS receiver N10 has strong anti-interference ability and supports all satellite constellations, including GPS, GLONASS, Galileo, Beidou, and QZSS. An internal battery ensures continuous operation during power loss, while the FJD Location Basic Service platform allows for convenient management of base stations and users.

GET QUOTE

  • Achieve unparalleled precision in your operations with positioning accuracy down to the centimeter, ideal for demanding geospatial and construction tasks.

  • The system supports multiple satellite constellations and frequencies, ensuring reliable connectivity and accuracy even in challenging environments.

  • Designed for scalability, the N10 Cor system seamlessly supports up to 10,000 simultaneous users, making it a robust choice for large-scale deployments.

  • Performance parameters

    • Signal
      BDS: B1I/B2I/B3I/B1c/B2a/B2b
      Galileo: E1/E5a/E5b/E6
      GPS: L1/L2/L5
      QZSS: L1/L2/L5/L6
      Glonass: L1/L2

    • Single point position(RMS)
      Horizontal：1.5m
      Vertical：2.5m

    • DGPS(RMS)
      Horizontal：0.4m
      Vertical：0.8m

    • RTK(RMS)
      Horizontal：0.8cm + 1ppm
      Vertical：1.5cm + 1ppm

    • First positioning time
      Cold boot：< 20s
      Hot boot：< 10s

    • Re-acquisition
      < 1s

    • Differential data
      RTCM 2.x / 3.x

    • Network protocol
      NTRIP/TCP

    Environmental parameters

    • Operating temperature
      -40℃～+65℃

    • Storage temperature
      -40℃～+80℃

    • Humidity
      95% ± 4

    Electrical characteristic

    • Input voltage
      AC: 90—260V
      DC: 9—36V

    • Power consumption(Standard)
      5W

See it in action

编组 2 (4).png
N10 CONNNECT.png
编组 27.png

FAQs

What satellite constellations does the system support?

The N10 Cor system supports multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou, using multi-frequency signals for enhanced reliability and accuracy.

Is the system compatible with existing equipment?

Yes, the N10 Cor system is designed to integrate with various equipment and platforms, ensuring seamless compatibility for diverse applications.

Does the system require a constant internet connection?

The N10 Cor system operates with network RTK technology, and while an internet connection enhances performance, it can maintain accuracy using local base station setups.

Can the system handle extreme weather conditions?

Yes, the N10 Cor system is built with rugged durability to perform reliably in a wide range of environmental conditions.
